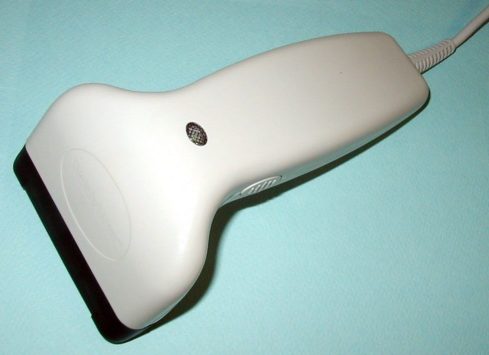

| Touch type CCD Bar code scanner |
The manufacture : Welch Allyn (The U.S.)
VT3080
- It is a of the high-speed scan rate (100 pieces of scan/the second), amount resolution (0.10mm) and so on highly efficient bar code scanner.
- It is the optimal for the equipment of the Battery drive with the low power mode.
- It does a bar code only in the touch and it is possible to read a bar code easily.
- The simple data edit feature can be used.
- It is the design which is excellent about the operability in addition to being light-weight.
- It distinguishes between the various bar code automatically with the CCD image sensor and it sees a bar code in reading..
- The power and the outside system connect with the keyboard connector of the unnecessary .DOS/V(PC-AT,PS/2) personal computer.
- There is not a special software driver, being necessary.
It sees a bar code in reading as the keyboard data. (The keyboard, too, can be used.) - When the bar code that reading was crowded is right, it outputs the terminator code which set bar code data +.
- The kind of the bar code that reading is crowded can be limited.
- In the condition of doing reading crowded and so on, of that it is possible to set. again, setting contents are preserved in the nonvolatile memory inside the scanner by the menu sheet.
| The name of the goods | VT3080-PS |
|---|---|
| Compatible personal computer | The DOS/V personal computer (PS/2, PC-AT) |
| The connection connector | MiniDIN 6Pin |
| The reading bar code | JAN/EAN/UPC/ITF/CODABAR(NW-7)/ CODE39/CODE93/CODE128/the others |
| The reading depth | 0-20mm |
| The reading width | A maximum of 80 mm (74 mm in contact) |
| The MRD value | 37.5% |
| The power | 5% of DC5V± (It supplies from the personal computer main unit). |
| The consumption electric current | 120 mA (in case of operation), 200 μA (Of standing-by) |
| The reading confirmation | The buzzer sound and the LED lamp |
| The interface | The keyboard wedge |
| The light source | Red LED 660 nm |
| The resolution | 0.10mm |
| The scan speed | 100 pieces of scan/the second |
| The main unit size | The left figure reference |
| The weight | 225 g of main unit |
| The warm humidity condition | In case of operation : 0-40°C 25-85% -10-55°C of : in safekeeping 25-85% Be in neither dewfall. |
| Outside the revolt light | 1500Lux |

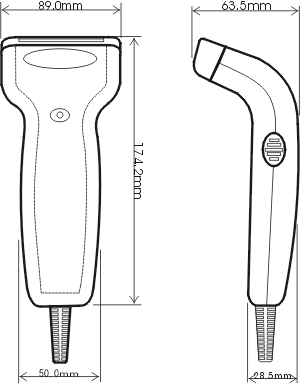

The size figure
This catalog entry is not in the previous announcement and sometimes changed into it
Also, the performance reference value of the manufacturer publication of to be specified is not the one which publicizes a typical value in case of factory shipment or a value in design and guarantees the performance of the product individual.
