IT3800 series

The handheld Linear imager
The manufacture : Welch Allyn (The U.S.)

IT3800LR,IT3800VHD

,IT3800PDF
IT3800LR-ESD,IT3800VHD-ESD

In to irradiate (the aiming line) the brightly clear LED light of new method like a straight line, it understands a reading area clearly and to do bar code read crowded compared with the conventional CCD scanner becomes more easily.
It loads a high-speed scanner engine in 270 decoding/second.
The outward appearance to have designed beautifully of changed the image of the conventional bar code scanner mainly.
To fit in with the severe work environment, including some solid and durable structure design, it slips, it thinks much of the operability on the actual scenes such as the rubber grip for the prevention and it is designed.
By multi- interface feature, the connection cable can be set to the keyboard connection or the USB connection with the same main unit by changing exchange scanner setting. (The USB interface corresponds from the shipment model since then in 2000.)
IT3800PDF can read two-dimensional bar code PDF417 in addition to usual bar code.
It mixes conductivity carbon at the box material to the IT3800 series and there are IT3800LR-ESD, IT3800VHD-ESD for the special use to have considered accident prevention by the obctrostatic discharge, too. It is the optimal to use on the precise equipment construction scene to dislike static electricity and so on.
Also, it is the optimal to use in the factory of the semiconductor and so on and so on, too, because it is the package to have considered operation by the clean room of class 100 in the same machine and it is delivered. (The main unit color becomes black.)

The use example

The circulation and the physical distribution: The management of POS, the In/Out storehouse and the stock
The manufacturing: The management of the progress of the shelf wholesale, pickking and the process
The public and the finance: The inspection and the price payment

The product-type turn

IT3800LR-12 (The long range)
IT3800VHD-12 (The amount resolution)
IT3800PDF-12(PDF417)
IT3800LR-ESD (ESD vs. the plan article long range)
IT3800VHD-ESD (ESD vs. the plan article amount resolution)

The optical specification
The product name	IT3800LR	IT3800VHD	IT3800PDF
The light source	630 nm The light which is visible Red LED
The photo acceptance unit	3648 elements Linear イメージャー
The reading distance	25mm-203 mm (UPC<0.33mm> In case of the code)
The reading width	127 mm at the time of the 203-mm distance (The bar code)
The resolution	The time of the 88-mm distance 0.127mm	The time of the 88-mm distance 0.076mm	The time of the 88-mm distance 0.128 mm (The bar code) 0.168mm(PDF417)
The skew corner	±30°
The pace corner	±15°
The level movement speed	127mm/Sec
The MRD value	30%Min
The scan speed	67,135,270 pieces of scan/Sec are selectable
The reading speed	270 pieces of decoding/Sec(Max)

The outward form size
The length	135mm
The height	152mm
The width	99mm
The weight	180 g (Only the main unit)
The main unit	Polycarbonate/ABS mixing, UL-94V0

The power specification
The line voltage		5VDC±10%
The consumption electric current		In case of operation	Of standing-by	The time of the sleep	The rush electric current
	270Scan/Sec	275mA	125mA	5microA	400mA
	135Scan/Sec	180mA	125mA	5microA	400mA
	67Scan/Sec	150mA	125mA	5microA	400mA
The power noise		Max 100mV(ph-pl), 10 to 100KHz

Environment
The operation temperature	0℃-+50℃
The save temperature	-40℃-+70℃
The humidity	0-95% (The non-dewfall)
The fall impact	It works normally 25 times after the fall to concrete than the 1.53-m height.
The vibration	It is earthquake-proof to 20-300 Hz of 5G/.
The 耐 static electricity	15KV (The non-destruction)

The standard
IT3800LR,VHD Compatible bar code	Codabar, Code39, ITF, Code25, Matrix25,Code11,Code128,UPC, EAN, JAN
IT3800PDF Compatible bar code	Codabar, Code39, ITF, Code25, Matrix25,Code11, Code128,UPC, EAN, JAN, PDF417
The standard acquisition	The FCC class B, CEEMC class B, IEC60825-1, LED safe standard class 1, UL

Optional item

Simple Stand The 38HOLDER expansion figure

The photograph is IT3800LR.

The hands free stand The UNI-STAND expansion figure

※ In case of standard RS232 serial connection, a power isn't included in the pin of the connector of the side of the host. Therefore, the connector must be supplied with the electric power from outside. When the +5-V power can not be supplied from the connection equipment, prepare a power separately. (It is selling the scanner main unit AC power or a keyboard power branch cable with the of not attached.別 sell option the power.)

※ When a kanji code is contained in IT3800PDF in the PDF417 code, the keyboard interface can not type a kanji code right. When a kanji code is contained in the data to use, use by the serial interface.

The photograph is IT3800VHD.

As for IT3800VHD, the main unit color becomes dark green color.

The power option for the RS232 connection

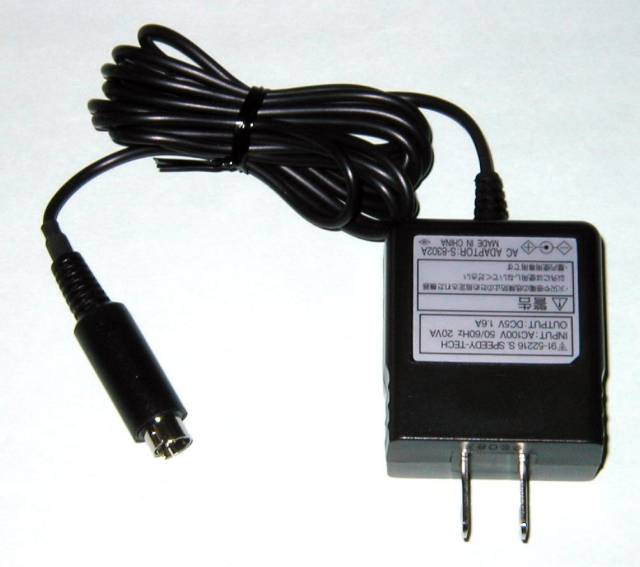

The AC power PS5/C

It is a small switching power.

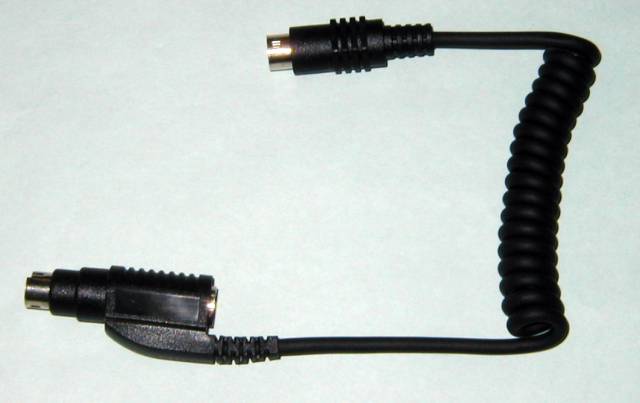

The keyboard power branch cable

In to put this cable between the personal computer and the keyboard, it branches and it takes out a +5-V power.

The connection cable

※ A connection cable isn't attached to this machine. Adjust and buy the cable to have adjusted to the connection interface.

･ The DOS/V disk top personal computer
The Y cable for the keyboard connection: CBLWA-PS-Y; The standard cable The scanner and the outside keyboard can be connected by the branch. [Straight cable]
The cable color : The beige
The cable length : About 2.4 m
･ The DOS/V disk top personal computer
The Y cable for the keyboard connection: CBLWA-PS-Y-C; The scanner and the outside keyboard can be connected by the branch. [Curl cable]
The cable color : The black
The cable length : About 1.4 m A maximum of about 2.5 m
･ For the DOS/V notebook personal computer connection: CBLWA-PS-NOTE; Only the scanner can be connected. [Straight cable]
The cable color : The beige
The cable length : About 1.7 m
･ For the USB interface connection: CBLWA-USB
USB adapter is included in the cable. [Curl cable]; The cable color : The black
The adapter part : The beige
The cable full length : About 1.2 m A maximum of about 2.3 m
･ For the RS232 serial interface connection: CBLWA-RS9F
D-Sub The 9Pin female connector [The straight cable]
The cable color : The beige
The cable length : About 1.7 m

CBLWA-RS9F-C6; D-Sub The 9Pin female connector [The cable of 6 m of curls] [It trains special order severely].
The cable color : The black
The cable length : About 6 m

※ In case of RS232 connection, the power becomes necessary separately.
※ The above cable length is us and is the one to have pulled out and to have measured. By the cable length, the lot and so on have looseness little at it. When needing correct length strictly, don't use this value.

Not guaranteeing the specification of the product by this table The above value is the reprinting of "from the evaluation data by the test chart" of the WelchAllyn Inc. brochure. With the convenience of the manufacturer, there is not a specification in the previous announcement and being sometimes changed into it
