| Touch read type CCD Bar code scanner BCS83T series Keyboard wedge interface |
BCS83TPS, BCS83TAT
- It does the bar code only in the touch and it can be easily used.
- In to common-ize a lot of bar code devices and controllers, it succeeded in the substantial cost down.
- Automatically the distinction, its seeing a bar code at high speed and correctly in Read in the various bar code with the CCD image sensor
- The power and the outside system are unnecessary. DOS/V*1(PC-AT,PS/2) It connects with the keyboard connector of the personal computer.
- The read as like as keyboard, and the use of the bar code by the special software as the necessary not being. keyboard data are possible.
- When the bar code that reading was crowded is right, it outputs the barcode data with terminator code.
- The kind of the bar code that reading is crowded can be limited.
- The ASCII code can be added to the place around the bar code that reading was crowded.
- In the condition of doing reading crowded, of that it is possible to set. again, setting contents are preserved in inner EEPROM by the menu sheet.
| The series name | BCS83T Series | |
| The name of the goods | BCS83TPS | BCS83TAT |
| Compatible personal computer | The DOS/V personal computer*2(PS/2, PC-AT) | |
| The connection connector | MiniDIN 6Pin | DIN 5Pin |
| The reading bar code | JAN/EAN/UPC/ITF/CODABAR(NW-7)/ CODE39/FULL ASCII CODE39/ CODE93/CODE128/the others |
|
| The reading depth | 0-15mm | |
| The reading width | A maximum of 82 mm | |
| The PCS value | 0.45Min | |
| The power | 5% of DC5V± (It supplies from the personal computer main unit). | |
| The consumption electric current | 135mA | |
| The reading confirmation | The buzzer sound and the LED lamp | |
| The interface | The keyboard wedge | |
| The light source | Red LED 660 nm | |
| The reading sensor | 2048 pixel CCD image sensor | |
| The resolution | 0.125mm | |
| The scan speed | 33 pieces of scan/the second | |

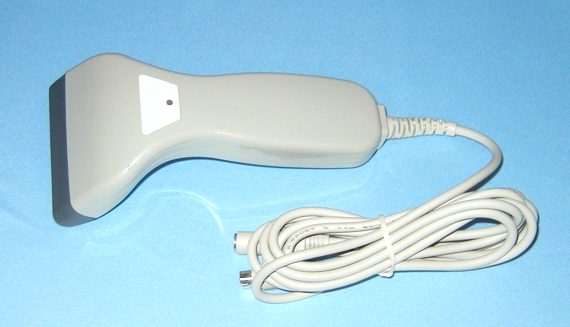

| The cable | 1.8m | |

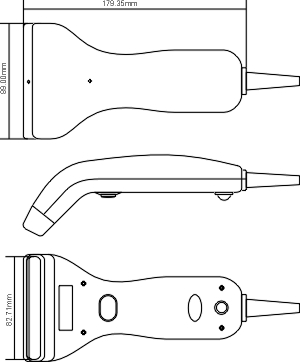

| The main unit size | 63 mm of about 89 ×179× (The time of the hand grip level condition) |
|
| The weight | 138 g of main unit | |
| The warm humidity condition | In case of operation : 0-50ºC 5-95% -10-60ºC of : in safekeeping 5-95% Be in neither dewfall. |
|
| Outside the revolt light | 1500Lux | |
- *1 Note
point in case of DOS/V personal computer connection There is a model that
the keyboard inside the main unit becomes in the disabling in the DOS/V
notebook personal computer when connecting a keyboard with the outside.
This is one by the notebook personal computer itself specification. Therefore, when connecting BCS83T and the outside keyboard with this personal computer, the keyboard inside the personal computer can not be used.
Also, it is designed to combine BCS83T with the keyboard and to use them. The personal computer which loaded with the keyboard controller of the PS/2 form use with the keyboard for PS/2 or PKB-001 of the different sell. (PS/2 keyboard ID code is returned to the personal computer by PKB-001.) - *2 The
DOS/V personal computer has two kinds of shapes of the keyboard connector.
(Doing PS/2 based : MiniDIN 6 P, doing PC-AT based : DIN 5 P) When buying a scanner, be careful.
This product is selling OEM supply from the bar code scanner manufacturer in Taiwan, being popular.
The brochure of BCS83T(PDF) (52KB)
This catalog entry is not in the previous announcement and sometimes changed into it Also, the performance reference value of the manufacturer publication of to be specified is not the one which publicizes a typical value in case of factory shipment or a value in design and guarantees the performance of the product individual.
